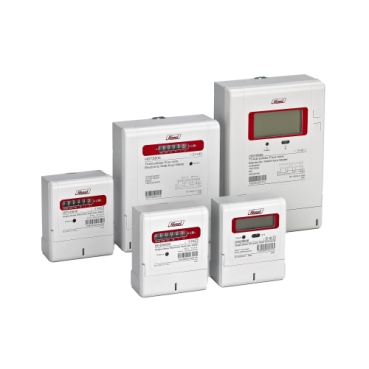

Electronic watt-hour meter, HDDS606, 230V, class 1, 15(60) A

HIMEL / Приборы для электрических сетей

HIMEL Products

Артикулы: HDDS606N100M10CL, HDDS606N100M10L, HDDS606N20M4L, HDDS606N40M4L, HDDS606N60M4L

Под заказ Цена по запросу Документы

Metering > Electronic Watt hour Meters

Цена Цена по запросу Уточним стоимость в коммерческом предложении.

SKU: 6
Фото: 2
Документы: 0
В наличии: 0

Выбрать другой SKU Все товары HIMEL

SKU и артикулы

6 позиций

SKU	Артикулы	Модификация	Наличие	Цена
HDDS606N100M10CL	Производитель: HDDS606N100M10CL Поставщик: HDDS606N100M10CL	Electronic watt-hour meter, HDDS606, 230V, class 1, 10(100) A, LCD 485 in	Под заказ	По запросу
HDDS606N100M10L	Производитель: HDDS606N100M10L Поставщик: HDDS606N100M10L	Electronic watt-hour meter, HDDS606, 230V, class 1, 10(100) A	Под заказ	По запросу
HDDS606N20M4L	Производитель: HDDS606N20M4L Поставщик: HDDS606N20M4L	Electronic watt-hour meter, HDDS606, 230V, class 1, 5(20) A	Под заказ	По запросу
HDDS606N40M4L	Производитель: HDDS606N40M4L Поставщик: HDDS606N40M4L	Electronic watt-hour meter, HDDS606, 230V, class 1, 10(40) A	Под заказ	По запросу
HDDS606N60M4L	Производитель: HDDS606N60M4L Поставщик: HDDS606N60M4L	Electronic watt-hour meter, HDDS606, 230V, class 1, 15(60) A	Под заказ	По запросу
HDDS606N6M4L	Производитель: HDDS606N6M4L Поставщик: HDDS606N6M4L	Electronic watt-hour meter, HDDS606, 230V, class 1, 1.5(6) A	Под заказ	По запросу

Характеристики

Товар и SKU

ATS_DISPLAY_TYPE

Display type: Dial | LCD

ATS_INF_RATED_CURRENT

Maximum [In] rated current: 6 A | 20 A | 40 A | 60 A | 100 A

ATS_NOMINAL_OUTPUT_CURRENT

Nominal output current: 1.5 A | 5 A | 10 A | 15 A

ATS_TYPE_OF_MEASUREMENT

Type of measurement: Energy

Сравнение SKU

SKU	Accuracy class	Ambient air temperature for operation	Ambient air temperature for storage	Depth	Device application	Display type	Height	Maximum rated current
HDDS606N100M10CL	Class 1 \|	-10…45 °C \|	-25…55 °C \|	51.5 mm \|	Energy metering \|	LCD \|	112 mm \|	100 A \|
HDDS606N100M10L	Class 1 \|	-10…45 °C \|	-25…55 °C \|	51.5 mm \|	Energy metering \|	Dial \|	112 mm \|	100 A \|
HDDS606N20M4L	Class 1 \|	-10…45 °C \|	-25…55 °C \|	51.5 mm \|	Energy metering \|	Dial \|	112 mm \|	20 A \|
HDDS606N40M4L	Class 1 \|	-10…45 °C \|	-25…55 °C \|	51.5 mm \|	Energy metering \|	Dial \|	112 mm \|	40 A \|
HDDS606N60M4L	Class 1 \|	-10…45 °C \|	-25…55 °C \|	51.5 mm \|	Energy metering \|	Dial \|	112 mm \|	60 A \|
HDDS606N6M4L	Class 1 \|	-10…45 °C \|	-25…55 °C \|	51.5 mm \|	Energy metering \|	Dial \|	112 mm \|	6 A \|

Все характеристики по каждому SKU

HDDS606N100M10CL

ATS_ACCURACY_CLASS

Accuracy class: Class 1 |

ATS_AMBIANT_AIR_TEMPERATURE

Ambient air temperature for operation: -10…45 °C |

ATS_DEPTH

Depth: 51.5 mm |

ATS_DEVICE_APPLICATION

Device application: Energy metering |

ATS_DISPLAY_TYPE

Display type: LCD |

ATS_HEIGHT

Height: 112 mm |

ATS_MOUNTING_MODE

Mounting mode: Flush-mounted |

ATS_NETWORK_FREQUENCY

Network frequency: 50 Hz |

ATS_NETWORK_NUMBER_OF_PHASES

Network number of phases: Single phase |

ATS_OPERATING_ALTITUDE

Operating altitude: 0...2000 m |

ATS_PRODUCT_OR_COMPONENT_TYPE

Product or component type: Kilowatt-hour meter |

ATS_STORAGE_AIR_TEMPERATURE

Ambient air temperature for storage: -25…55 °C |

ATS_TYPE_OF_MEASUREMENT

Type of measurement: Energy | Power | Current | Voltage | Frequency |

ATS_WIDTH

Width: 90 mm |

Complementary

Communication mode: Infrared |
Data recording: Alarms |
Maximum rated current: 100 A |
Nominal current: 10 A |
Power consumption in W: 2 W voltage circuit |
Type of installation: Indoor installation |
Voltage range: 0.9...1.1 Us |

Environment

Standards: IEC 62053-21 |

Main

Communication port protocol: RS485 |
Power consumption in VA: 10 VA voltage circuit | 4 VA current circuit |
Range of product: HDDS606 |

Offer Sustainability

Sustainable packaging: No |

Packing Units

Number of Units in Package 1: 1 |
Unit Type of Package 1: PCE |

HDDS606N100M10L

ATS_ACCURACY_CLASS

Accuracy class: Class 1 |

ATS_AMBIANT_AIR_TEMPERATURE

Ambient air temperature for operation: -10…45 °C |

ATS_DEPTH

Depth: 51.5 mm |

ATS_DEVICE_APPLICATION

Device application: Energy metering |

ATS_DISPLAY_TYPE

Display type: Dial |

ATS_HEIGHT

Height: 112 mm |

ATS_MOUNTING_MODE

Mounting mode: Flush-mounted |

ATS_NETWORK_FREQUENCY

Network frequency: 50 Hz |

ATS_NETWORK_NUMBER_OF_PHASES

Network number of phases: Single phase |

ATS_OPERATING_ALTITUDE

Operating altitude: 0...2000 m |

ATS_PRODUCT_OR_COMPONENT_TYPE

Product or component type: Kilowatt-hour meter |

ATS_STORAGE_AIR_TEMPERATURE

Ambient air temperature for storage: -25…55 °C |

ATS_TYPE_OF_MEASUREMENT

Type of measurement: Energy |

ATS_WIDTH

Width: 90 mm |

Complementary

Maximum rated current: 100 A |
Nominal current: 10 A |
Power consumption in W: 2 W voltage circuit |
Type of installation: Indoor installation |
Voltage range: 0.9...1.1 Us |

Environment

Standards: IEC 62053-21 |

Main

Power consumption in VA: 10 VA voltage circuit | 4 VA current circuit |
Range of product: HDDS606 |

Offer Sustainability

Sustainable packaging: No |

Packing Units

Number of Units in Package 1: 1 |
Unit Type of Package 1: PCE |

HDDS606N20M4L

ATS_ACCURACY_CLASS

Accuracy class: Class 1 |

ATS_AMBIANT_AIR_TEMPERATURE

Ambient air temperature for operation: -10…45 °C |

ATS_DEPTH

Depth: 51.5 mm |

ATS_DEVICE_APPLICATION

Device application: Energy metering |

ATS_DISPLAY_TYPE

Display type: Dial |

ATS_HEIGHT

Height: 112 mm |

ATS_MOUNTING_MODE

Mounting mode: Flush-mounted |

ATS_NETWORK_FREQUENCY

Network frequency: 50 Hz |

ATS_NETWORK_NUMBER_OF_PHASES

Network number of phases: Single phase |

ATS_OPERATING_ALTITUDE

Operating altitude: 0...2000 m |

ATS_PRODUCT_OR_COMPONENT_TYPE

Product or component type: Kilowatt-hour meter |

ATS_STORAGE_AIR_TEMPERATURE

Ambient air temperature for storage: -25…55 °C |

ATS_TYPE_OF_MEASUREMENT

Type of measurement: Energy |

ATS_WIDTH

Width: 90 mm |

Complementary

Maximum rated current: 20 A |
Nominal current: 5 A |
Power consumption in W: 2 W voltage circuit |
Type of installation: Indoor installation |
Voltage range: 0.9...1.1 Us |

Environment

Standards: IEC 62053-21 |

Main

Power consumption in VA: 10 VA voltage circuit | 4 VA current circuit |
Range of product: HDDS606 |

Offer Sustainability

Sustainable packaging: No |

Packing Units

Number of Units in Package 1: 1 |
Unit Type of Package 1: PCE |

HDDS606N40M4L

ATS_ACCURACY_CLASS

Accuracy class: Class 1 |

ATS_AMBIANT_AIR_TEMPERATURE

Ambient air temperature for operation: -10…45 °C |

ATS_DEPTH

Depth: 51.5 mm |

ATS_DEVICE_APPLICATION

Device application: Energy metering |

ATS_DISPLAY_TYPE

Display type: Dial |

ATS_HEIGHT

Height: 112 mm |

ATS_MOUNTING_MODE

Mounting mode: Flush-mounted |

ATS_NETWORK_FREQUENCY

Network frequency: 50 Hz |

ATS_NETWORK_NUMBER_OF_PHASES

Network number of phases: Single phase |

ATS_OPERATING_ALTITUDE

Operating altitude: 0...2000 m |

ATS_PRODUCT_OR_COMPONENT_TYPE

Product or component type: Kilowatt-hour meter |

ATS_STORAGE_AIR_TEMPERATURE

Ambient air temperature for storage: -25…55 °C |

ATS_TYPE_OF_MEASUREMENT

Type of measurement: Energy |

ATS_WIDTH

Width: 90 mm |

Complementary

Maximum rated current: 40 A |
Nominal current: 10 A |
Power consumption in W: 2 W voltage circuit |
Type of installation: Indoor installation |
Voltage range: 0.9...1.1 Us |

Environment

Standards: IEC 62053-21 |

Main

Power consumption in VA: 10 VA voltage circuit | 4 VA current circuit |
Range of product: HDDS606 |

Offer Sustainability

Sustainable packaging: No |

Packing Units

Number of Units in Package 1: 1 |
Unit Type of Package 1: PCE |

HDDS606N60M4L

ATS_ACCURACY_CLASS

Accuracy class: Class 1 |

ATS_AMBIANT_AIR_TEMPERATURE

Ambient air temperature for operation: -10…45 °C |

ATS_DEPTH

Depth: 51.5 mm |

ATS_DEVICE_APPLICATION

Device application: Energy metering |

ATS_DISPLAY_TYPE

Display type: Dial |

ATS_HEIGHT

Height: 112 mm |

ATS_MOUNTING_MODE

Mounting mode: Flush-mounted |

ATS_NETWORK_FREQUENCY

Network frequency: 50 Hz |

ATS_NETWORK_NUMBER_OF_PHASES

Network number of phases: Single phase |

ATS_OPERATING_ALTITUDE

Operating altitude: 0...2000 m |

ATS_PRODUCT_OR_COMPONENT_TYPE

Product or component type: Kilowatt-hour meter |

ATS_STORAGE_AIR_TEMPERATURE

Ambient air temperature for storage: -25…55 °C |

ATS_TYPE_OF_MEASUREMENT

Type of measurement: Energy |

ATS_WIDTH

Width: 90 mm |

Complementary

Maximum rated current: 60 A |
Nominal current: 15 A |
Power consumption in W: 2 W voltage circuit |
Type of installation: Indoor installation |
Voltage range: 0.9...1.1 Us |

Environment

Standards: IEC 62053-21 |

Main

Power consumption in VA: 10 VA voltage circuit | 4 VA current circuit |
Range of product: HDDS606 |

Offer Sustainability

Sustainable packaging: No |

Packing Units

Number of Units in Package 1: 1 |
Unit Type of Package 1: PCE |

HDDS606N6M4L

ATS_ACCURACY_CLASS

Accuracy class: Class 1 |

ATS_AMBIANT_AIR_TEMPERATURE

Ambient air temperature for operation: -10…45 °C |

ATS_DEPTH

Depth: 51.5 mm |

ATS_DEVICE_APPLICATION

Device application: Energy metering |

ATS_DISPLAY_TYPE

Display type: Dial |

ATS_HEIGHT

Height: 112 mm |

ATS_MOUNTING_MODE

Mounting mode: Flush-mounted |

ATS_NETWORK_FREQUENCY

Network frequency: 50 Hz |

ATS_NETWORK_NUMBER_OF_PHASES

Network number of phases: Single phase |

ATS_OPERATING_ALTITUDE

Operating altitude: 0...2000 m |

ATS_PRODUCT_OR_COMPONENT_TYPE

Product or component type: Kilowatt-hour meter |

ATS_STORAGE_AIR_TEMPERATURE

Ambient air temperature for storage: -25…55 °C |

ATS_TYPE_OF_MEASUREMENT

Type of measurement: Energy |

ATS_WIDTH

Width: 90 mm |

Complementary

Maximum rated current: 6 A |
Nominal current: 1.5 A |
Power consumption in W: 2 W voltage circuit |
Type of installation: Indoor installation |
Voltage range: 0.9...1.1 Us |

Environment

Standards: IEC 62053-21 |

Main

Power consumption in VA: 10 VA voltage circuit | 4 VA current circuit |
Range of product: HDDS606 |

Offer Sustainability

Sustainable packaging: No |

Packing Units

Number of Units in Package 1: 1 |
Unit Type of Package 1: PCE |
